Adhesion Testing for Air Barriers: Ensuring Building Envelope Integrity

Adhesion Testing for Air Barriers: Ensuring Building Envelope Integrity

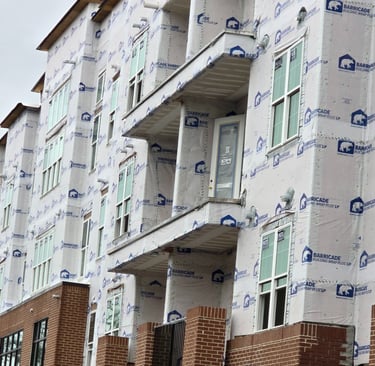

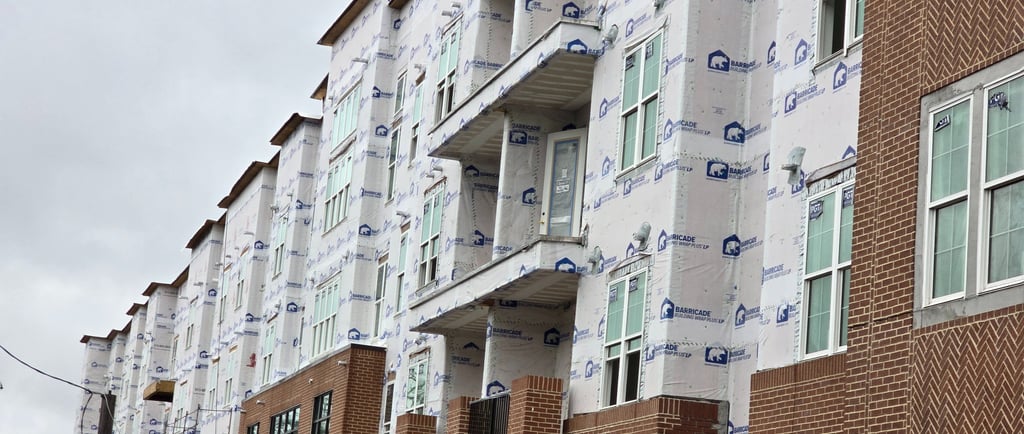

1. Introduction to Air Barriers and Adhesion Testing

The performance of modern buildings is increasingly scrutinized for energy efficiency, durability, and the health and comfort of occupants. A critical component in achieving these goals is the effective management of airflow through the building envelope. Air barriers play a vital role in controlling this air leakage, which can lead to significant energy loss as conditioned air escapes and unconditioned air infiltrates . Beyond energy consumption, uncontrolled airflow can also drive moisture into wall and roof assemblies, potentially causing condensation, mold growth, and the deterioration of building materials . Therefore, the integrity and continuity of the air barrier system are paramount for the overall performance and longevity of any structure . The ability of the air barrier to effectively resist pressure differentials hinges on its continuous bond to the underlying substrate.

Adhesion testing is an essential procedure to verify that the air barrier material is properly bonded to the substrate. This ensures the intended continuity of the air barrier is maintained and its capacity to withstand air pressure differences is not compromised . Without adequate adhesion, even an air barrier material with excellent inherent properties can fail prematurely. Air infiltration can migrate behind a poorly adhered barrier, potentially leading to its detachment from the substrate over time . This can significantly reduce the barrier's effectiveness, contributing to both moisture ingress and air leakage. Adhesion testing serves as a critical validation step, confirming the quality of the bond achieved during installation and identifying potential issues arising from improper surface preparation or the presence of contaminants that could impede the bond . This report aims to provide a comprehensive understanding of air barrier adhesion testing, covering the fundamental principles, relevant standards, testing procedures, and best practices. This information will serve as a valuable resource for creating an instructional video to effectively showcase the features and benefits of a digital adhesion tester in this crucial application.

2. Fundamentals of Adhesion Testing for Air Barriers

Adhesion, in the context of air barriers, specifically refers to the measure of pull-off strength, or the amount of perpendicular tensile force required to detach the air barrier material from its substrate . This test essentially quantifies the strength of the bond that has been established between the air barrier and the underlying wall or roof assembly . The result of an adhesion test indicates whether the installation has been completed correctly, as separation during the test will typically occur at the weakest point within the system, which could be within the air barrier material itself, at the interface between the material and the substrate, or even within the substrate .

Different types of air barriers are employed in construction, each with its own unique application method and inherent adhesion characteristics, thus leading to varying adhesion requirements. Fluid-applied membranes, for instance, are applied as a liquid that cures to form a continuous barrier. These require robust adhesion to a variety of substrate materials, such as sheathing boards or concrete, and must be capable of withstanding exposure to diverse environmental conditions . The Air Barrier Association of America (ABAA) has established a minimum pull-off value of 16 pounds per square inch (psi) for fluid-applied and other non-mechanically fastened air and water resistive barrier materials . It is crucial that these materials are allowed to cure for the manufacturer's specified time before adhesion testing is performed to ensure accurate results .

Self-adhered sheet membranes rely on a pressure-sensitive adhesive backing for their attachment to the substrate. For these materials, adhesion testing often involves assessing both the peel or stripping strength of the adhesive bond to the substrate and the lap adhesion between overlapping sheets . A strong bond to the substrate and well-sealed laps are essential to prevent air intrusion .

Spray polyurethane foam (SPF) air barriers also require adhesion testing to ensure they are properly bonded to the substrate . The National Air Barrier Association (NABA) mandates both adhesion and cohesion testing for SPF under their Quality Assurance Program (QAP) . Similar to fluid-applied membranes, proper preparation of the substrate is critical for achieving adequate adhesion with SPF .

Several factors can contribute to poor adhesion of air barriers. Inadequate preparation of the substrate, such as the presence of dust, dirt, oil, or grease, can significantly hinder the formation of a strong bond . Contamination of the adhesive surface with water or dirt can also lead to adhesion failure . For materials requiring priming, improper application, including using too little or too much primer, or not allowing it to cure properly, can result in poor adhesion . In the case of self-adhered membranes, insufficient rolling during installation can lead to inadequate contact with the substrate and weak adhesion . Ensuring the air barrier material is applied to a flat surface is also crucial for proper adhesion . Allowing the adhesive used to attach the test dolly to the air barrier to cure fully is essential before conducting the pull test . The moisture content of the sheathing can also influence adhesion, with high moisture levels potentially leading to lower adhesion values . Extreme temperatures during application or testing can also negatively affect adhesion. Finally, using materials that are not chemically compatible can result in adhesion failures over time .

3. Key Standards and Guidelines

The air barrier industry relies on standardized test methods to ensure consistency and comparability in evaluating the adhesion strength of air barrier materials. Two primary standards are widely used: ASTM D4541 and ABAA T0002.

ASTM D4541-22, Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers, provides a standardized procedure for determining the pull-off strength, or adhesion, of coatings applied to rigid substrates . Although initially developed for evaluating coatings on metal substrates, this test method is now commonly employed to assess the adhesion of air and water-resistive barriers (AWBs) applied to various sheathing materials, including gypsum board, plywood, oriented strand board (OSB), and cement board . The test involves bonding a metal or plywood dolly of a defined size to the surface of the air barrier material using a suitable adhesive. Once the adhesive has cured, a portable adhesion tester is attached to the dolly, and a gradually increasing perpendicular tensile force is applied until failure occurs. The maximum force required to detach the dolly, along with the location of the failure, is recorded. ASTM D4541 includes two testing protocols: Protocol 1, which determines the maximum force to cause detachment (test to fracture), and Protocol 2, which assesses whether the coating can withstand a specified minimum load (pass/fail testing) . The standard also specifies that the rate of tensile load application should not exceed 1 MPa/s (150 psi/s) .

Recognizing the specific needs of the air and water resistive barrier industry, the ABAA developed ABAA T0002-2019, Standard Test Method for Pull-Off Strength of Adhered Air and Water Resistive Barriers Using an Adhesion Tester . While ABAA initially adopted ASTM D4541 for evaluating pull adhesion, experience gained through their audit process revealed that results could vary significantly due to modifications in testing procedures implemented by different installers, such as variations in disk size, pull rate, and whether scoring around the disk was performed . To address these issues and standardize the process within the air barrier industry, ABAA developed ABAA T0002. This standard incorporates several key modifications to ASTM D4541. One significant difference is the requirement to cut around the test disk down to the substrate before performing the pull test, ensuring that the measured adhesion is specific to the area under the disk and not influenced by the surrounding material . ABAA T0002 also specifies a load rate of one revolution of the tester handle per ten seconds (equivalent to approximately 58 psi/minute) , and the test is conducted until failure occurs . The standard mandates that three pull tests be performed within a 39 inch by 39 inch area to constitute one test . Furthermore, ABAA requires the use of a digital gauge for adhesion testing, whereas ASTM D4541 allows for both digital and analog gauges . ABAA has established a minimum pull-off value of 16 psi for air and water resistive barrier materials, and installers are required to perform adhesion testing daily as part of ABAA's Quality Assurance Program .

4. Step-by-Step Guide to Adhesion Testing Procedures

While ASTM D4541 and ABAA T0002 are the primary standards for pull-off adhesion testing of air barriers, other relevant standards and guidelines exist. The National Air Barrier Association (NABA) also requires adhesion testing to be conducted in accordance with ASTM D4541 for projects specified under their QAP . ASTM D3359, Standard Test Methods for Rating Adhesion by Tape Test, provides a simpler, qualitative method for evaluating the adhesion of coatings to smooth substrates using adhesive tape, but it is generally not suitable for textured air barrier materials or applications over exterior insulation and finish systems (EIFS) or stucco . ASTM E2357, Standard Test Method for Determining Air Leakage of Air Barrier Assemblies, focuses on measuring the air leakage rate of an entire wall assembly in a laboratory setting, rather than the adhesion of the air barrier material itself . Similarly, ASTM E779, Standard Test Method for Determining Air Leakage Rate by Fan Pressurization, is used to measure the overall air leakage of a completed building . AAMA 711, Voluntary Test Method to Determine Chemical Compatibility of Sealants and Self-Adhered Flexible Waterproofing Membranes, includes procedures for assessing the peel adhesion of self-adhered membranes after various conditioning regimes . These additional standards provide a broader context for evaluating the overall performance of air barrier systems.

Performing adhesion testing for air barriers requires careful adherence to established procedures to ensure reliable and accurate results. The following steps outline the general process, with specific considerations based on the chosen standard and the type of air barrier being tested.

Surface Preparation: The first critical step is to ensure the surface of the air barrier material is clean, dry, and free from any loose debris, dust, or other contaminants that could interfere with the adhesion of the test dolly . Depending on the condition of the surface, light abrasion may be necessary to remove any surface films, followed by cleaning with a manufacturer-approved cleaning agent to remove any particulates . It is also important to ensure that the air barrier material is applied to a flat surface to allow for proper bonding of the test dolly .

Dolly Attachment: Select a clean metal or plywood dolly of the appropriate size. For ABAA T0002 testing, a 2.25-inch diameter dolly is required , while ASTM D4541 and NABA typically use dollies ranging from 2¼ to 4 inches in diameter . Apply a suitable adhesive, such as a two-component epoxy, hot glue, or cyanoacrylate, to both the face of the dolly and the corresponding area on the air barrier surface, strictly following the adhesive manufacturer's instructions for mixing and application . Any excess adhesive that squeezes out from around the edges of the dolly should be carefully removed .

Adhesive Curing: Allow the adhesive to cure completely for the duration specified by the manufacturer . During the initial curing phase, it is important to apply constant pressure to the dolly to ensure good contact with the air barrier surface. This can be achieved by gently holding the dolly in place by hand or using a clamping system . Care should be taken not to twist or move the dolly once it is placed on the air barrier, as this can dislodge it and lead to inaccurate test results .

Operating the Adhesion Tester: Once the adhesive has fully cured, attach the adhesion tester to the dolly, ensuring that the connection is secure and that no pre-stress is applied to the test area . For tests on non-horizontal surfaces, it is crucial to support the adhesion tester so that its weight does not contribute to the force being applied to the sample . If performing adhesion testing according to ABAA T0002, use a sharp utility knife to carefully cut around the perimeter of the dolly, penetrating through the air barrier material down to the substrate . Apply a smooth, continuous, and even pulling force to the dolly using the adhesion tester . It is essential to maintain the specified pull rate. For ASTM D4541 Method B, a common rate is one revolution of the hand crank per minute , while ABAA T0002 requires a rate of one revolution per ten seconds . Continue applying force until a separation occurs, and record the maximum force displayed on the gauge at the point of failure .

Failure Analysis: After the test, carefully examine the failure surface on both the detached air barrier material and the substrate to determine the location of separation . Identify whether the failure was adhesive (separation between the air barrier and the substrate), cohesive (tearing or separation within the air barrier material itself), or substrate failure (delamination or damage to the substrate) . Record the type of failure and, if possible, estimate the percentage of the failure occurring on each surface .

Number of Tests: The number of adhesion tests required will depend on the applicable standard or project specifications. For ABAA T0002, three pull tests are to be conducted within every 39 inch by 39 inch area to be considered one test . ASTM D4541 typically requires three pulls in a representative area .

Reporting: Thoroughly document all aspects of the adhesion testing process, including the date and time of the test, the location on the building, the type of air barrier material and substrate, the adhesive used and its curing time, the size of the dolly, the model of the adhesion tester, the maximum pull-off force achieved for each test, and a detailed description of the failure mode . If required, calculate the pull-off stress in psi using the formula provided in the relevant standard .

Repair: Any areas of the air barrier material that were damaged during the pull test must be properly repaired in accordance with the air barrier manufacturer's instructions .

Specific Considerations for Different Types of Air Barriers: When testing fluid-applied air barriers, it is essential to allow for a sufficient curing period, which may be longer than for other types of air barriers . Ensure that the adhesive used for attaching the dolly is compatible with the specific fluid-applied material; often, an epoxy that bonds to plastic is recommended . For self-adhered sheet membranes, while pull-off tests are common, consider also performing peel tests, such as those outlined in AAMA 711, to evaluate the strength of the adhesive bond over a length . For spray polyurethane foam (SPF) air barriers, it may be necessary to trim the foam surface with a knife to create a flat plane for proper adhesion of the test dolly . Ensure that the epoxy adhesive used is suitable for bonding to either plastic (for most SPF) or metal (for foil-faced SPF) .

Adhering to proper technique throughout the adhesion testing procedure is crucial for obtaining valid and meaningful results. Applying the pulling force smoothly and at the correct rate, as specified by the chosen standard, is essential . Avoid any pre-stress on the adhesion tester before initiating the pull . The correct selection of adhesive for dolly attachment and ensuring it cures fully under appropriate conditions are also vital . Accurately recording the peak force at failure and carefully analyzing the failure mode are essential for proper interpretation of the test results . Adhesion testing should not be performed in direct sunlight, as this can skew the results . Any anomalies or unexpected results should be investigated to determine the cause . Finally, it is imperative to ensure that the adhesion testing gauge is properly calibrated according to the manufacturer's recommendations to guarantee the accuracy of the measurements .

5. Advantages of Digital Adhesion Testers

The use of digital adhesion testers offers several significant advantages over traditional analog testers when evaluating the adhesion strength of air barriers. These benefits contribute to increased accuracy, efficiency, and reliability of the testing process.

Digital gauges commonly provide a higher level of accuracy and precision compared to their analog counterparts. Typically, digital gauges offer an accuracy of around 0.5% of the full scale, whereas analog gauges often have an accuracy of approximately 2% . This enhanced accuracy is particularly beneficial for critical measurements where even small variations can have significant implications for assessing the quality of the air barrier installation. Furthermore, digital readouts provide clear and unambiguous numerical values, reducing the potential for misinterpretation that can occur with analog dials . Factors such as parallax error, lighting conditions, and the inspector's eyesight can all influence the reading of an analog gauge, whereas a digital display provides an unequivocal result . Digital testers also often feature finer measurement increments or resolution, allowing for more detailed and precise readings of the pull-off force .

The ease of reading and interpreting measurements is another key advantage of digital adhesion testers. The numerical readings displayed on an electronic screen are typically clear, concise, and easy to understand at a glance . Many digital models feature larger displays, further enhancing readability, especially in challenging field conditions . Some advanced digital testers may even offer graphical representations of the measured force over time, providing additional insights into the behavior of the adhesive bond . This user-friendly interface simplifies the testing process and minimizes the potential for human error in recording and interpreting the results.

Many digital adhesion testers are equipped with built-in data logging capabilities, allowing users to store and recall test results directly on the device . This feature streamlines the process of record-keeping and eliminates the need for manual transcription of data, reducing the risk of errors. The stored data can often be downloaded to a computer for further analysis and the generation of comprehensive test reports . This facilitates quality control by allowing for the tracking of adhesion performance over time and across different areas of a building. The ability to analyze test data can also help identify patterns and trends, potentially leading to improvements in installation techniques or material selection . Some digital testers may even offer the option to print out test results directly from the device or export the data in formats compatible with spreadsheet software.

Certain digital adhesion testers incorporate advanced features that further enhance their usability and accuracy. Some models feature automatic hydraulic actuation, which provides a consistent and controlled increase in pressure during the pull test, leading to more repeatable and accurate results compared to manual pumping with analog testers . Self-aligning dollies, which are often included with digital testers, help to ensure that the pulling force is applied perpendicular to the test surface, even on uneven substrates, thereby improving the accuracy of the measurement .

Beyond these primary benefits, digital adhesion testers may offer other advantages. Calibration procedures for digital gauges are often easier and more straightforward than for analog gauges . Digital testers are generally designed to be durable and suitable for use in rigorous testing environments, with features like environmentally sealed enclosures that are weatherproof, dust-proof, and shockproof . Some advanced digital systems may also offer the potential for integration with specialized software for more sophisticated data analysis and reporting . Overall, the features and capabilities of digital adhesion testers contribute to a more accurate, efficient, and reliable assessment of air barrier adhesion strength.

6. Best Practices for Reliable Adhesion Testing

To ensure the accuracy and reliability of air barrier adhesion testing, it is essential to adhere to best practices throughout the entire process.

Maintaining the digital adhesion tester in optimal working condition is crucial. This includes ensuring that the gauge is calibrated regularly according to the manufacturer's guidelines . Following the manufacturer's instructions for the proper care and maintenance of the tester will help to prolong its lifespan and ensure consistent performance.

The selection of the appropriate adhesive for attaching the test dolly to the air barrier material is critical. The chosen adhesive must be compatible with both the dolly material (typically aluminum or plywood) and the specific type of air barrier being tested . It is imperative to adhere strictly to the adhesive manufacturer's instructions for proper mixing and application . Furthermore, ensuring that the adhesive cures for the recommended duration and under the appropriate temperature and humidity conditions is vital for achieving a strong bond between the dolly and the air barrier .

Thorough documentation of all test parameters and environmental conditions is essential for ensuring the traceability and interpretability of the results. This includes recording the date, time, and specific location of each test, as well as the ambient temperature and humidity . The type of air barrier material and the substrate to which it is applied should be clearly noted . Detailed records of the adhesive used, including its manufacturer and curing time, should be maintained . The size of the test dolly and the model of the adhesion tester used for each test should also be documented . Most importantly, the maximum pull-off force achieved during each test and a detailed description of the failure mode should be accurately recorded .

Analyzing the mode of failure provides valuable insights into the integrity of the air barrier system. It is important to distinguish between adhesive failure, which indicates a problem with the bond between the air barrier and the substrate; cohesive failure, which suggests a weakness within the air barrier material itself; and substrate failure, which might point to an issue with the underlying construction rather than the air barrier adhesion . If substrate failure occurs, it is crucial to note this, as it may not represent a failure of the air barrier installation . Estimating and recording the percentage of release on each surface can further help in understanding the nature and extent of the bond failure .

7. Challenges and Considerations in Air Barrier Adhesion Testing

While adhesion testing is a critical quality control measure, several challenges and considerations must be taken into account to ensure accurate and meaningful results.

The condition of the substrate to which the air barrier is applied can significantly influence adhesion test results. High moisture content in the sheathing, for example, can negatively affect the bond strength and may lead to an underestimation of the air barrier's true adhesion potential . The presence of dust, dirt, or other contaminants on the substrate surface can also impede proper adhesion of the air barrier material, leading to lower pull-off values . Additionally, the rigidity and fastening of the substrate can play a role. Semi-rigid materials like gypsum board or plywood may deform or even delaminate under the tensile load applied during the test, potentially resulting in a substrate failure rather than an adhesion failure of the air barrier . If the sheathing is thin or poorly fastened, the test results might reflect the strength of the substrate rather than the adhesion of the air barrier . Therefore, it is essential for testers to be aware of the substrate conditions and to carefully consider the mode of failure when interpreting the results .

As mentioned previously, there is a potential for substrate failure to occur during adhesion testing, especially when testing air barriers applied to sheathing materials . If the force applied by the adhesion tester causes delamination of the gypsum facing or fiber pull-out from plywood or OSB before the adhesive bond of the air barrier fails, the test result may not accurately represent the adhesion strength of the air barrier itself . In such cases, the failure occurs within the substrate, indicating a weakness in the underlying construction. Test personnel must carefully observe the failure mode and exercise professional judgment in determining whether the failure is indicative of poor air barrier adhesion or a deficiency in the substrate .

For tests conducted according to ASTM D4541 on sheathing materials, scoring around the test dolly down to the substrate is a critical step . This scoring isolates the adhesion of the air barrier directly beneath the dolly, preventing the surrounding air barrier material from contributing to the measured pull-off strength and leading to a more precise assessment . Without scoring, the measured adhesion values may be artificially inflated . However, it is crucial to perform the scoring carefully, ensuring that the cut penetrates through the air barrier but does not go too deep into the substrate, as this could compromise the integrity of the sheathing itself . If the sheathing fails at the scored line, the test result might not be a true reflection of the air barrier's adhesion strength but rather an indication of a test-induced defect in the substrate . ABAA T0002 specifically requires cutting around the disk .

Environmental factors present at the time of testing can also influence the results. Temperature and humidity can affect the properties of both the air barrier material and the adhesive used to attach the dolly, potentially leading to variations in pull-off force values . Direct sunlight can cause the surface temperature of the air barrier to rise, which may affect the adhesion test . As mentioned earlier, the moisture content of the sheathing, which can be influenced by recent rain or high humidity, can also impact adhesion . Additionally, the heat generated by certain adhesives, such as hot glue, during the curing process can potentially affect the substrate or the air barrier material itself . Therefore, it is important to document the environmental conditions during testing to help in the interpretation of the results and to ensure consistency across multiple tests .

Finally, the compatibility of the air barrier material with the substrate and any other materials it comes into contact with is a critical consideration . Using incompatible materials can lead to adhesion failures over time due to chemical interactions or differences in thermal expansion rates . While adhesion testing at the time of installation can verify the initial bond strength, it may not reveal potential long-term compatibility issues. Therefore, it is essential to ensure that all materials used in the air barrier system are compatible to prevent future adhesion problems .

Conclusion

Adhesion testing is a fundamental aspect of quality assurance for air barrier systems, ensuring their continuous and effective performance in controlling air leakage and protecting the building envelope. This report has highlighted the critical role of air barriers in building performance, the importance of adhesion for their integrity, and the standardized methods used to evaluate this crucial property. Both ASTM D4541 and ABAA T0002 provide valuable frameworks for conducting pull-off adhesion tests, with ABAA T0002 offering modifications tailored to the specific needs of the air barrier industry. A step-by-step guide to the testing procedure, along with considerations for different air barrier types and common errors to avoid, underscores the importance of proper technique in obtaining reliable results.

Digital adhesion testers offer significant advantages over analog testers, providing enhanced accuracy, ease of use, and data management capabilities that contribute to a more robust and efficient testing process. Adhering to best practices, including proper calibration, adhesive selection, thorough documentation, and careful analysis of failure modes, is essential for ensuring the validity of the test results. Finally, understanding the challenges and considerations associated with air barrier adhesion testing, such as the influence of substrate conditions, the potential for substrate failure, the importance of scoring, the impact of environmental factors, and material compatibility, is crucial for accurate interpretation of the data and for ensuring the long-term performance of the air barrier system. By embracing standardized testing methods and leveraging the benefits of digital technology, construction professionals can effectively verify the adhesion of air barriers, contributing to more energy-efficient, durable, and healthy buildings.
